PA33CL50 perf
Back to the list of technical parametersThe technical information in this edition was accurate at the time of the printing. We reserve the right to make changes due to the progressiv development of our products. The latest information can be adtained upon request.
| Wall panel ISOLAMIN PA33CL50 perforated | |
| Thickness | 50 mm |
| Weight | 19,1 kg/m2 |
| Modular width | 565,1180 mm |
| Fire class | incombustible |

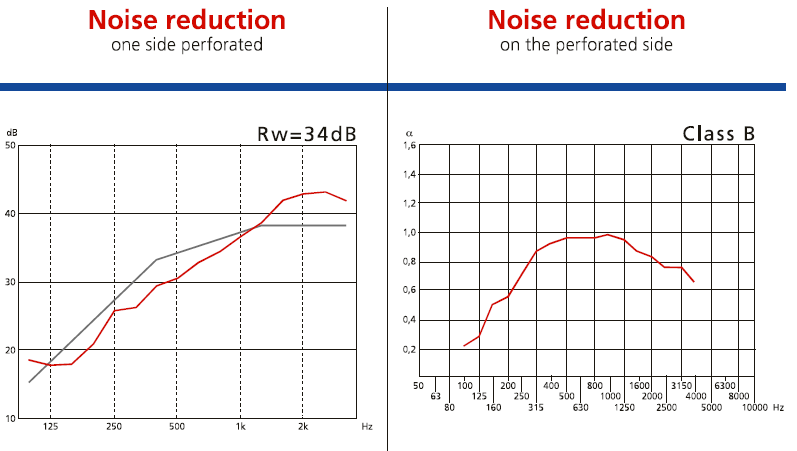

| Sound reduction | 34 dB Rw |
| Sound absorption | B |
| Coefficient of thermal conductance | 0,81 W/m2°C |
| Tolerances | |
| Length | ± 5mm |
| Width | ± 1mm |
| Thickness | + 0/-1mm |
| Surface material |
|
| Material | hot dipped galvanised steel sheet (one side perforated) |
| Surface | galv, painted |
| Thickness | 0,7 mm |
| Core material | |
| Material | mineral wool |
| Density | 170kg/m3 ± 10 % |
